W2

STUDIOMASTER W2

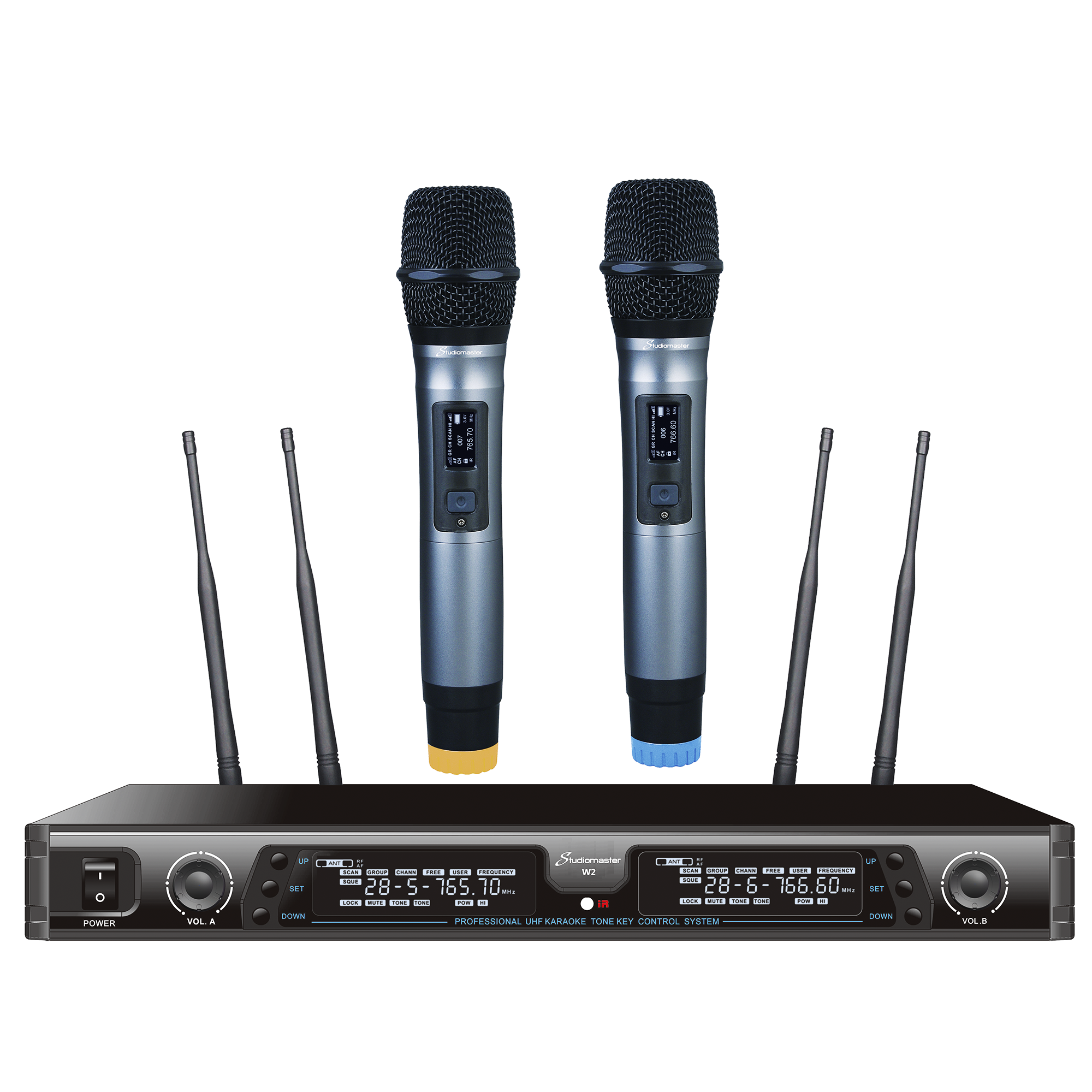

Dual Handheld Wireless Microphone System

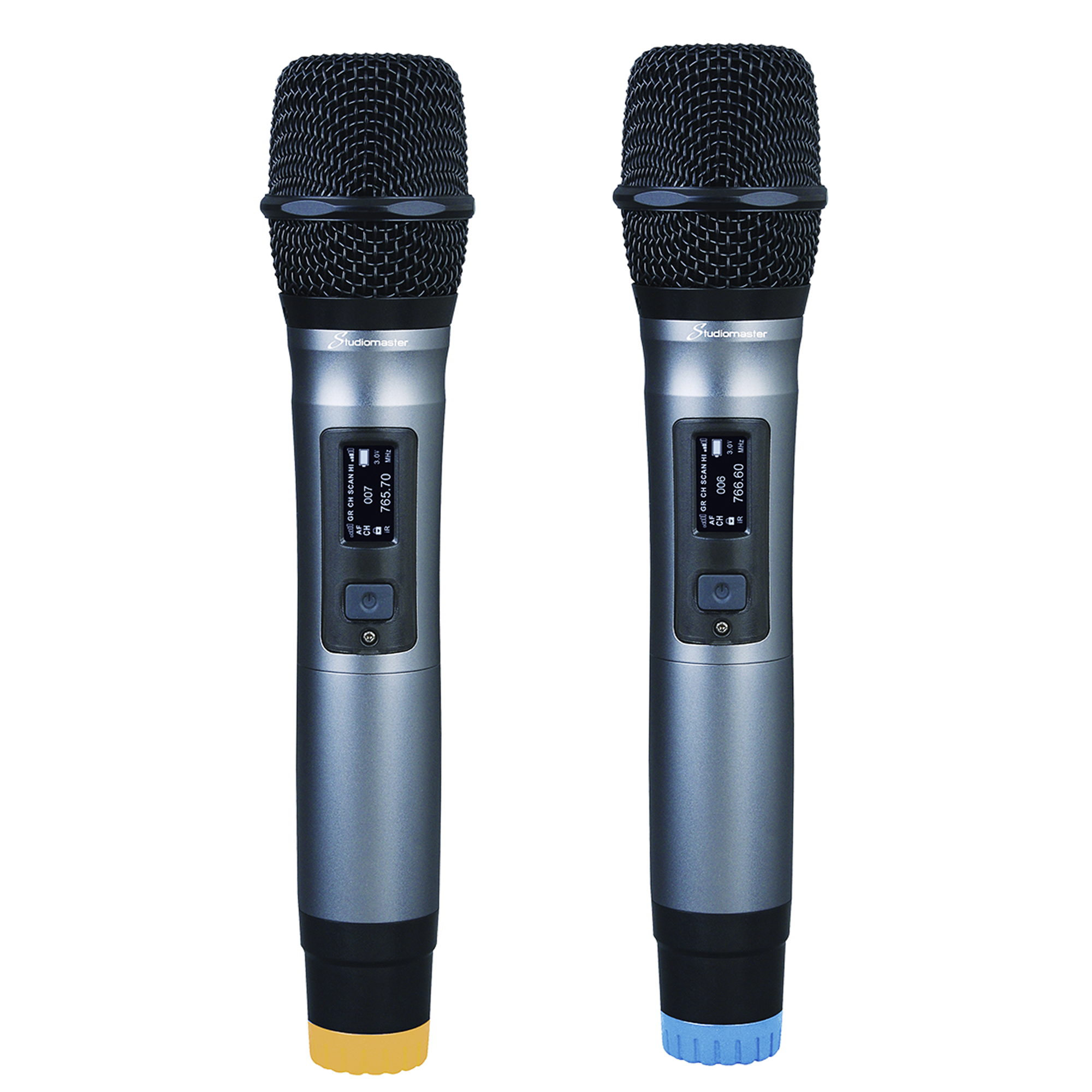

Studiomaster W2 is a High Quality Dual Channel handheld wireless microphone system that uses adjustable UHF600-999MHz band, Advanced digital pilot technology, up tp 200 sets can be used without interferance . Automatic frequency scan feature searches for available frequencies. Features PLL system. Preset 240 non-interfered channels, adjustable 600 free frequencies. The handheld microphones are rechargeable handheld microphones with 80M range.

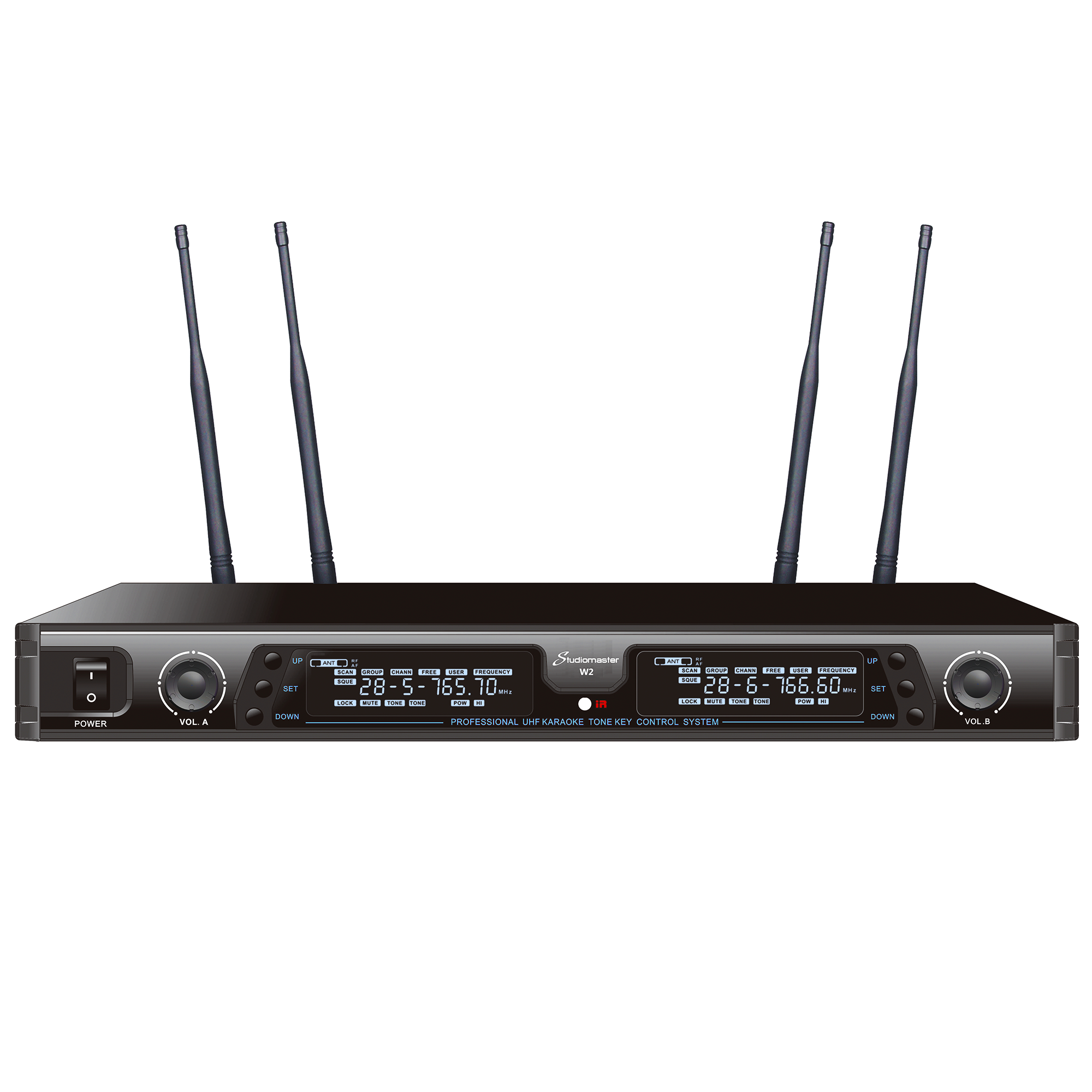

The module is standard 19-inch rack mountable with included rack ears.

PRODUCT FEATURES:

High quality UHF band frequency duel Wireless Microphone System.
Can cover distance up to 100 feet(between Receiver and microphone).
Individual channel output with level control & mix output.

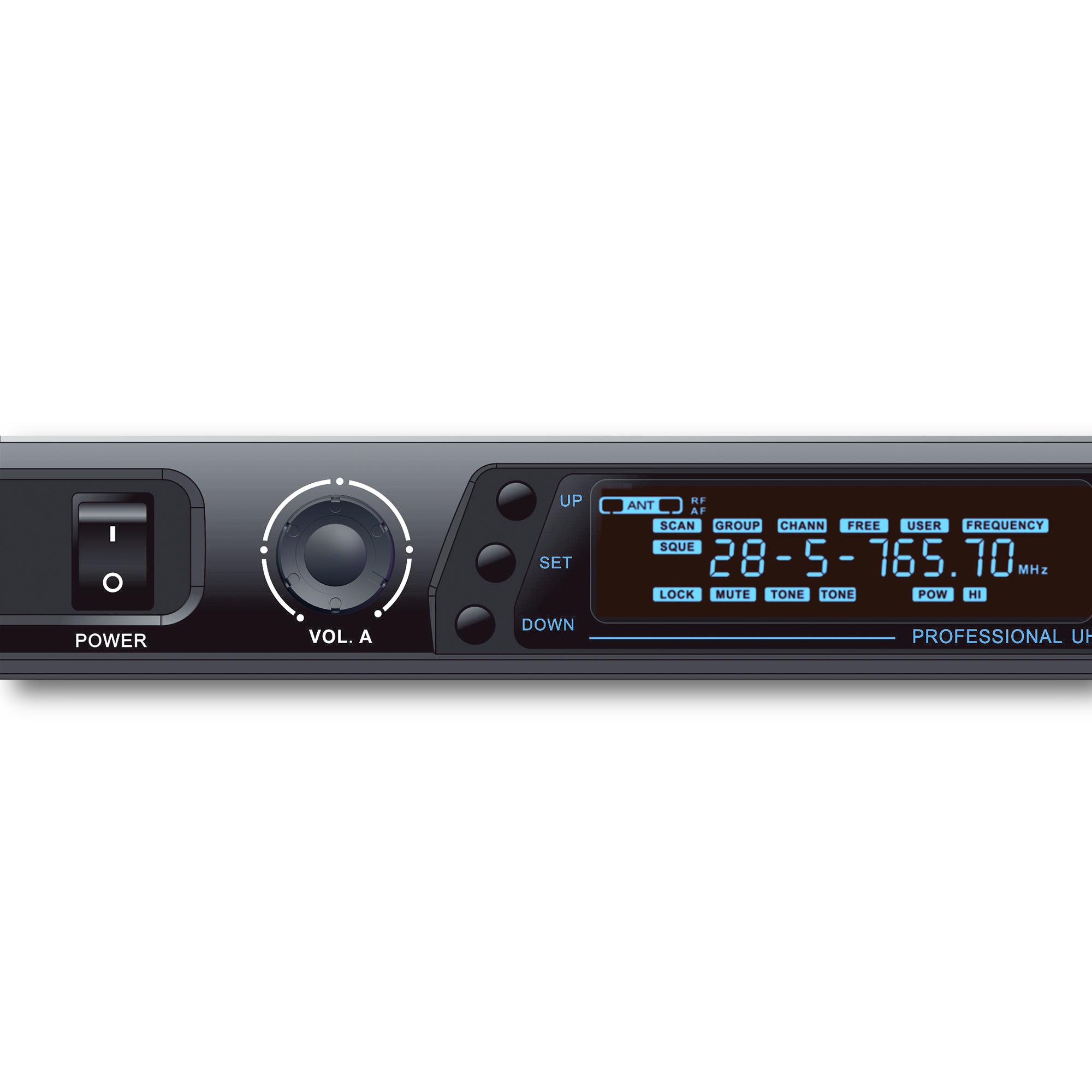

Display on Transmitter & Receiver for frequency indication.
Two microphones can be used at the same time.

PRODUCT SPECIFICATIONS:

Carrier Frequency: UHF660-690MHz, Adjustable
Frequency Stabilization: <±30ppm
Dynamic Range: >100dB
Total Harmonic Distortion: <0.5%
Frequency Response: 40Hz~15KHz±3dB
Audio Output Level: Balanced/Unbalanced 400mV
Receiver Power Supply: DC15-17V
Receiver Consume Power: 3 WATT
Receiver Signal/Noise Ratio: >95dB
Receiver Image & Spurious Rejection: >80dB
Receiver Border Upon Channel Rejection: >80dB Receiving Sensitivity:5dBuV
Receiver De-Emphasis: 50uS
Microphone Transmitter Power: 30mW
Microphone Modulation Type: FM
Microphone Deviation: 40KHz
Microphone Spurious Emission: >60dB
Microphone Battery Voltage: 3V (2×1.5V AA Battery)
Microphone Continuous Using: 5 hours
