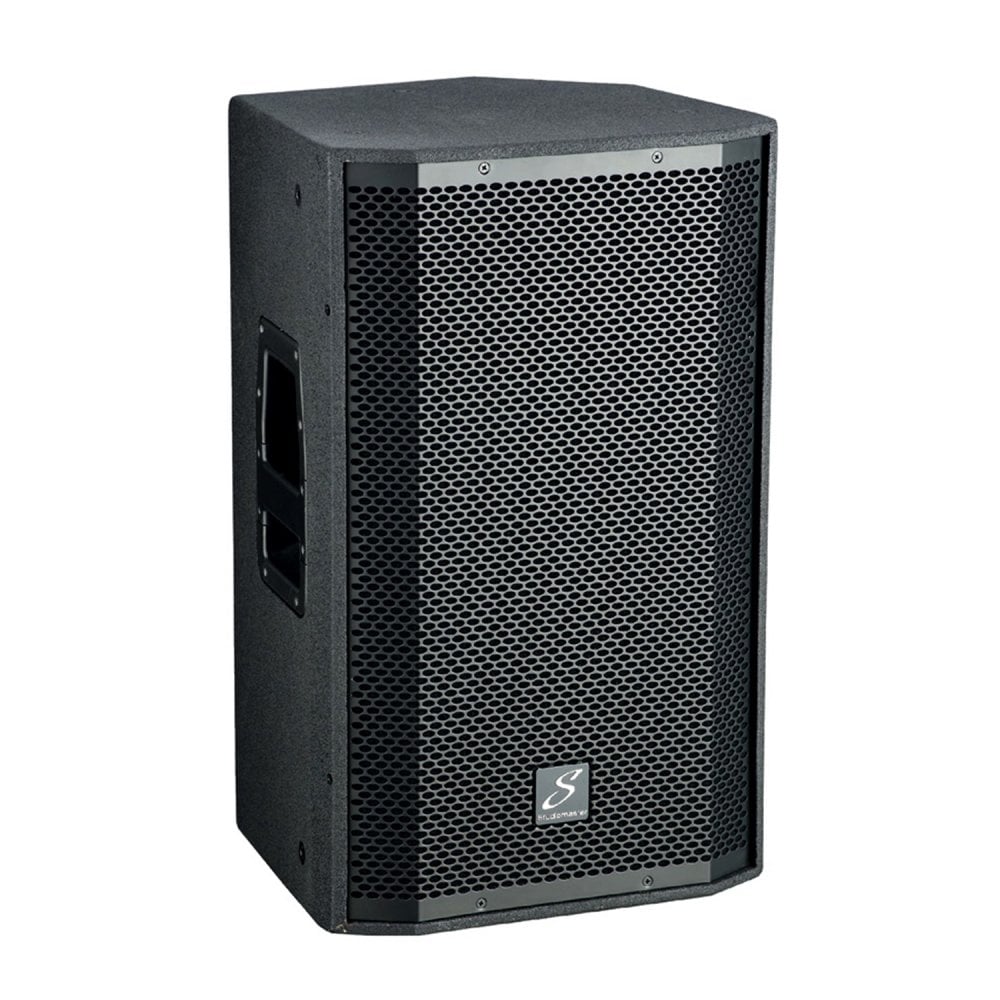

Venture 12AP

The Studiomaster VENTURE 12AP is a 12-inch active loudspeaker designed for clear and dynamic audio output. With its powerful capabilities and active design, it’s a versatile choice for different audio setups, delivering high-quality sound with convenience.

• Format: 12″ two way
• Frequency response: 60Hz – 18kHz (-3dB)
• Frequency range: 55kHz – 20kHz (-10dB)
• Amplifier power rms: LF350w HF50w
• Amplifier power peak: 800w
• Crossover frequency: 2.5kHz
• Woofer: 12″ dia, 63.5mm voice coil, ferrite magnet
• Compression driver: 34mm voice coil, ferrite magnet
• Coverage (Horixontal x Vertical): 80 x 60
• Max SPL: 131dB
• Cabinet matrial: 15mm ply wood

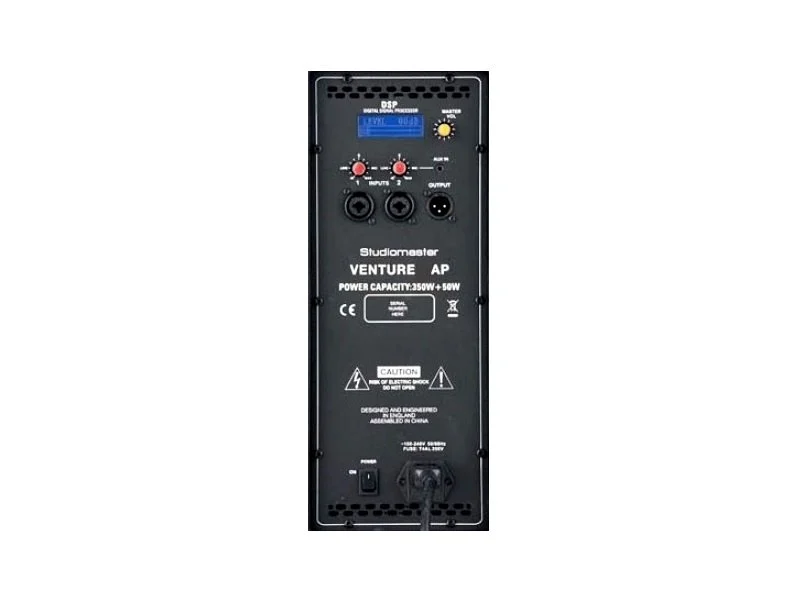

• input Connections: 2x XLR/Jack combo, 1x 3.5mm Jack
• Fly points: 13 x M10
• Power requirements: 100 – 240V
• Dimension W*H*D: 365x608x341 (mm)
• Weight net/shipping: 18KG/20Kg
