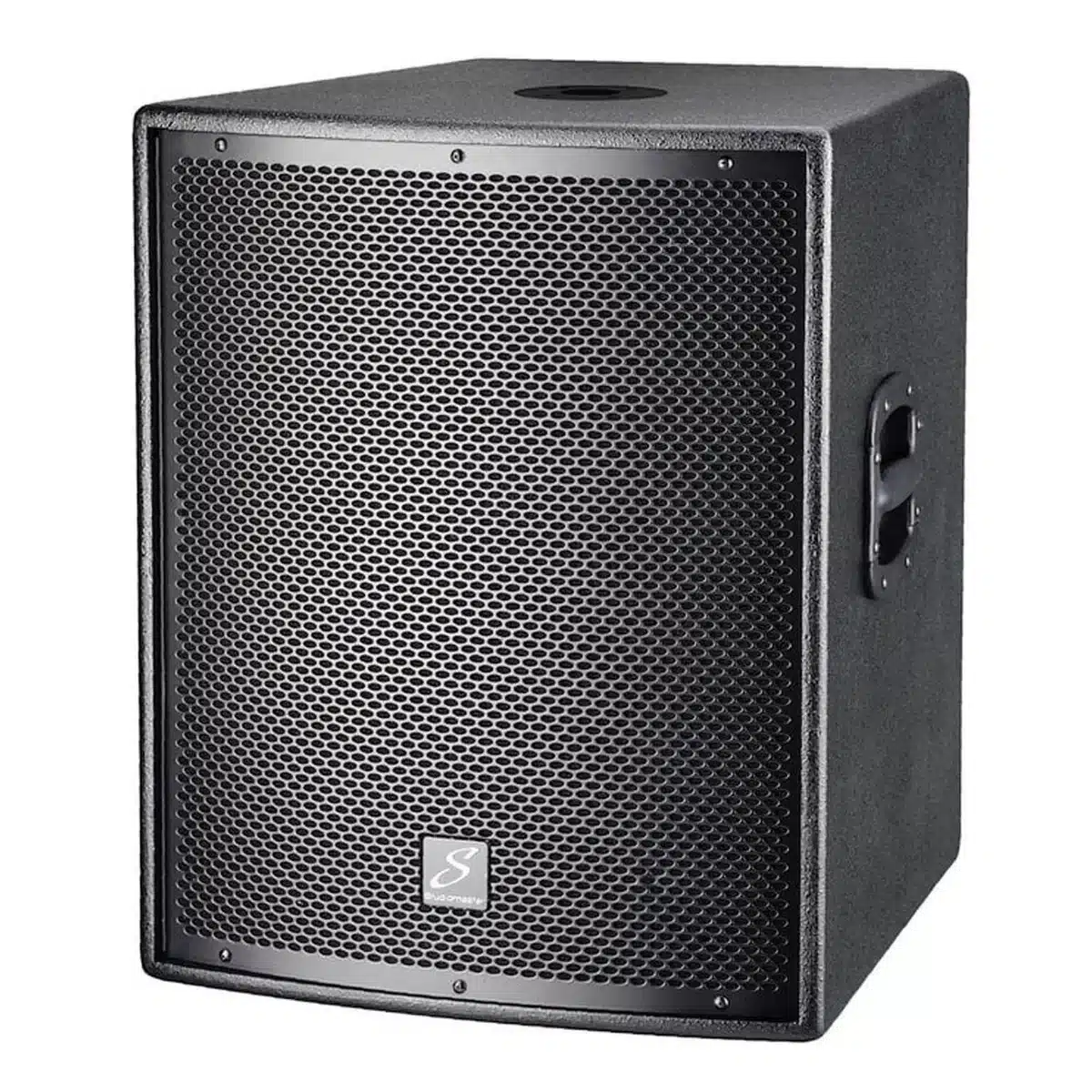

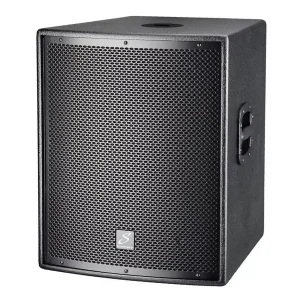

Drive 15SA

Complementing the comprehensive DRIVE range is the DRIVE 15SA active sub bass cabinet.  The new 15″ sub bass cabinets are constructed of 15mm plywood and have a durable spatter paint finish.  A 35mm top-hat connection is fitted to allow the simple fitting of a DRIVE top cabinet using a straight 35mm pole.  The amplifiers module is a lightweight high power CLASS D amplifier with a large 500w power.

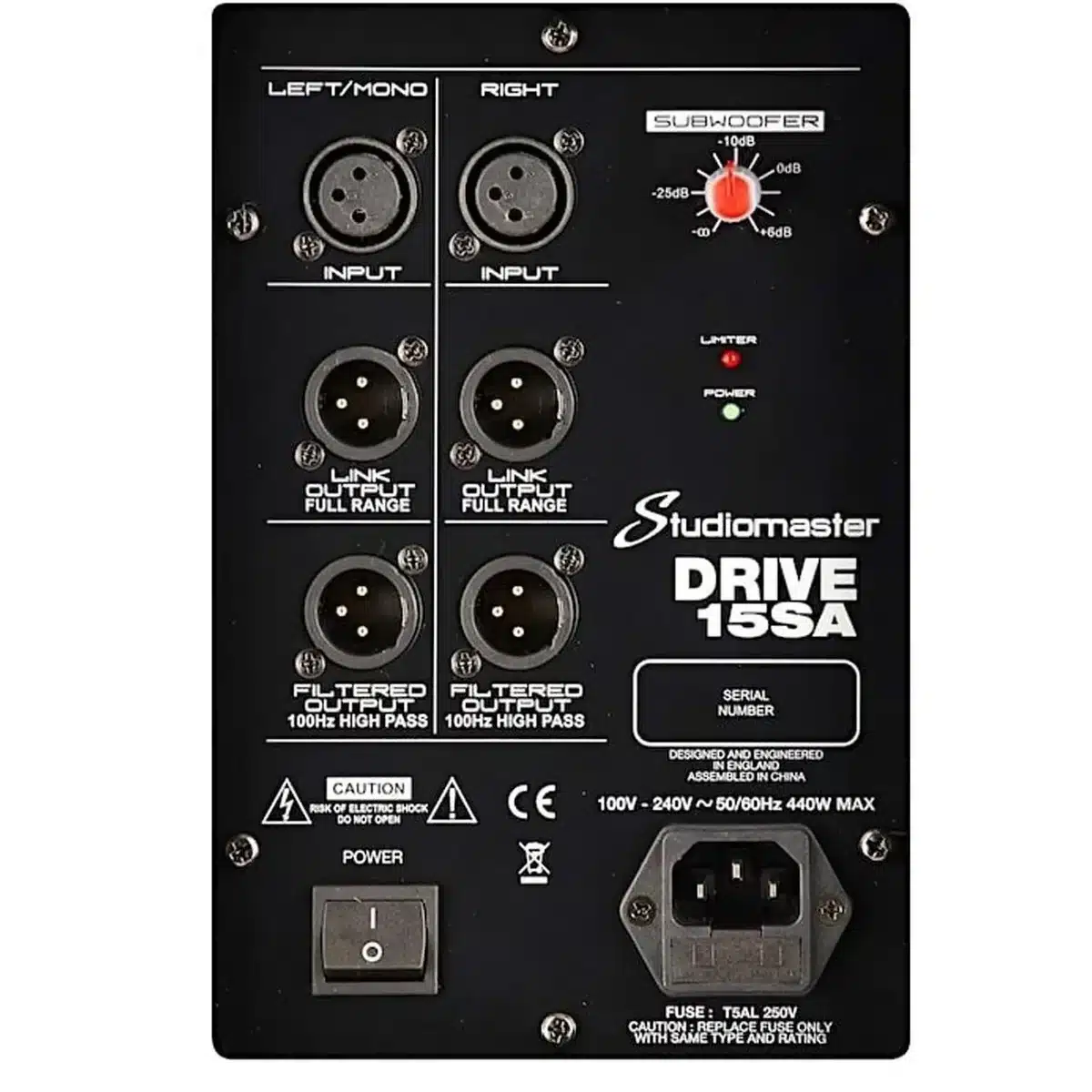

The rear panel of the Studiomaster DRIVE 15SA features balanced XLR input with XLR link outputs and a further pair of filtered outputs, so you can connect the sub into many different configurations.

• 15″ sub bass cabinet
• 15mm plywood construction
• 35mm top hat speaker pole connection
• 500 watt Class D amplification
• Balanced XLR inputs
• Full range and 100Hz filtered outputs
• Master volume and limiter
• Frequency response (-10dB): 30Hz – 150Hz
• Input sensitivity (Line): 0dBu
• Max SPL: 120dB
• Amp Power: 900W(PGM), 450W(RMS)
• LF: 15″ woofer / 75mm voice coil / 4ohm
• Input Connection: XLR input, link output, filtered output
• Power voltage: 115V / 230V
• Dimension W*H*D: 475 x 590 x 550 (mm)
• Weight: 25KG
