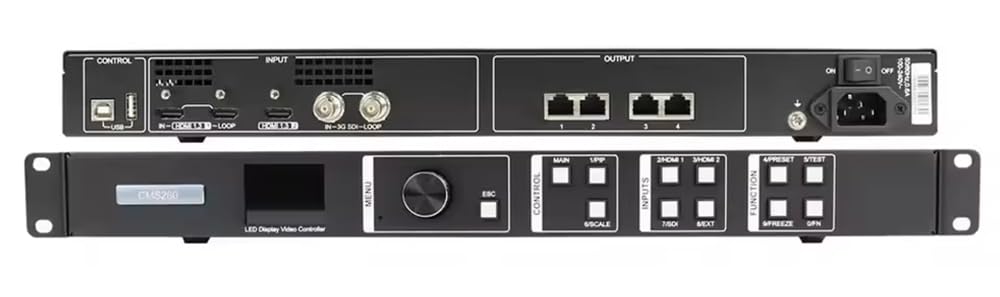

Novastar CMS260 all-in-one controller

Description

The CMS260 is an all-in-one controller with 4 Ethernet ports, driving up to 2.6M pixels at 3840×3840 resolution. Supporting multiple inputs, scaling, and chroma calibration, it delivers high-quality visuals for rentals, stages, and fine-pitch LED screens.

Core Features
Type: Integrated video processor & controller for professional LED displays
Output Capacity: 2.6 million pixels (max.)
Max Resolution: 3840×3840 pixels
Applications: Rental/stage events, fine-pitch LED screens, broadcast environments

Input Interfaces
Video Inputs:
2× HDMI 1.3 (max. 2K×1K@60Hz, HDCP 1.4; loop-through on Port 1)
1× 3G-SDI (max. 1920×1080@60Hz, supports HD/SD/3G-SDI formats)
Audio: HDMI-embedded audio input + independent audio output (via multifunction card)

Output & Control
4× Gigabit Ethernet Ports:
Pixel Capacity: Up to 2.6M pixels total (distributed across ports)
Max Sync Width/Height: 3840 pixels each
Port 1: Supports audio extraction via multifunction card
Cascading: Up to 4 units for large-scale mosaic displays

Advanced Processing
Dual-Layer Management:
Adjustable layer size/position/priority
SuperView III engine for seamless scaling/cropping
Color Calibration: Per-pixel brightness/chroma adjustment (via LCT software)
Sync & Backup:
Genlock synchronization across cascaded units
Hot backup: Input source/Ethernet port/device redundancy

User Controls
Front Panel:
LCD menu + rotary knob for settings
Shortcut keys: Presets (10 slots), test patterns, freeze frame
FN button: Customizable function
Operation Modes: Local (front panel) or remote (LCT software)

Physical & Environmental
Dimensions: 482.6mm (W) × 250mm (D) × 50.1mm (H) (1U rack width)
Power: 100-240V AC, 50/60Hz | Consumption: 28W
Operating Temp.: -20°C to +60°C | Humidity: 0–80% RH (non-condensing)
Weight: 3.2kg (net)

Key Advantages
.High-Capacity Output – Drives ultra-large LED walls (2.6M pixels)
.Pro-Grade Sync – Genlock & cascading for frame-accurate multi-screen setups
.Precision Calibration – Pixel-level brightness/chroma tuning
.Flexible Backup – Redundant inputs/ports/devices for mission-critical use (Included accessories: Power cord, HDMI/USB cables, certification docs.)
